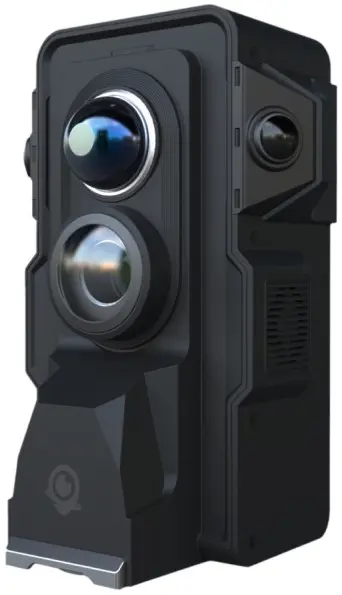

4DAGE 4DKanKan Meta
Code Testoon : 4DA4DKanKanMeta
Caméra/Scanner 3D fixe et mobile - +-1/2 cm - portée 70m - 200000pt/s.
Caméra 3D avec Lidar (30 lasers).
Utilisable en fixe ou en mobile ("SLAM").
Vitesse d'acquisition : 200000 pts/s max.
Portée : 0.2 à 70m.
Précision : 1cm (fixe), 2cm (mobile).
Résolution caméra jusqu'à 16K,champ de vison 360°Hx320°V.
GPS, bluetooth, WiFi, mémoire 16Go interne.
Option Offline possible (nous consulter).
4DKanKan Meta
LiDAR Scanner (Usable as Terrestrial Laser and Wearable "SLAM")
Equipped with 905nm ultra-wide-angle fixed LiDAR and combined with the industry's leading point cloud fusion algorithms, produces high-precision point cloud data and 16K panoramas, supports terrestrial laser scanning and SLAM scanning.
- Terrestrial laser scanning + SLAM
- Multi-functional modules
- 16K high-definition panoramas
- Point cloud accuracy within ±1cm
- Dynamic point cloud coloring
- Fully automated data processing by algorithms
- Industry-specific softwares
- Privatization of information
Innovative modular design
LiDAR :
- 905nm LiDAR
- 200,000 points per second
- Scanning range up to 70m
Wide-angle Cameras :
- Produce true color point clouds
- Exposure metering in real time
Ultra-HD Camera :
- 1-inch super bottom CMOS
- 16K ultra-HD panoramas
Multi-functional plugins (modules)
(sold separatly)
RTK
- Centimeter-level high-precision positioning based on GPS, GLONASS, GALILEO and BeiDou.
Thermal
- High-sensitivity temperature detector, temperature measurement accuracy of ± 2 ° C.
Fill Light
- Use fill light to work in dark environment, high brightness, low power consumption, improve work efficiency.
Multi-spectral
- Multi-spectral supports snapshot to capture multiple spectral bands at once and take multi-spectral images.
Fast reality capture and automatic data processing
Reality Capture
- Remote control from a mobile device, free selection of different capturing modes, one-touch data upload and automated processing.
Import Data into Surveying Software
- Support Autodesk series, CloudCompare, PCL and other professional softwares to create BIM and Building Lifecycle Management documents.
High-precision Measurement
- Flexible measurement tools, support accurate measurement of distance and area of space.
Space Tagging
- Add tags to any location in space, provide spatial information to digital twins.
Navigation
- Intelligent planning of indoor and outdoor routes, generate navigation routes automatically and accurately.
