See more of your signal with the power of 10

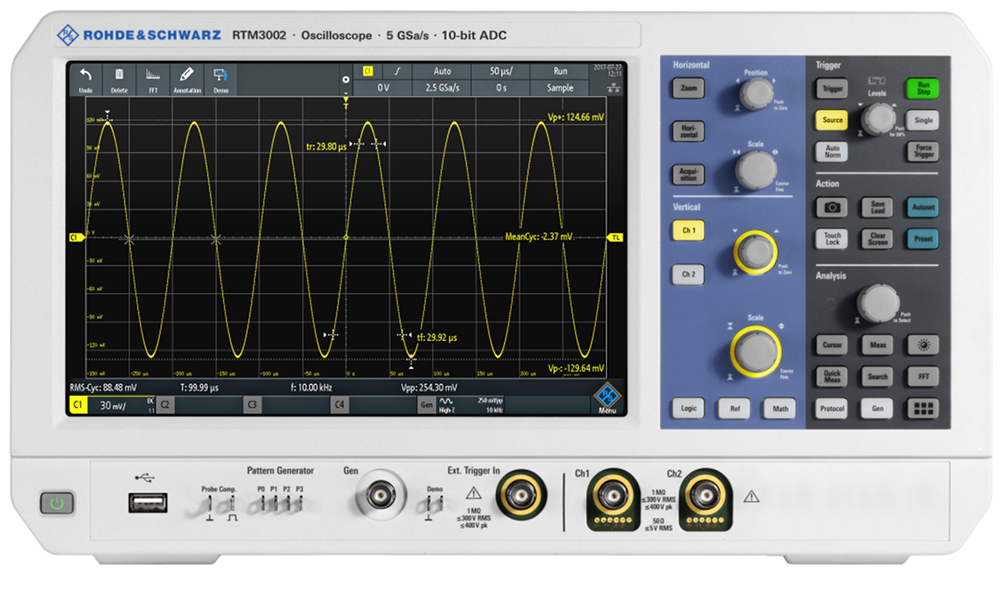

Designed as daily problem-solving tool, the R&S®RTM3000 combines the power of ten (10-bit ADC, 10 times the memory and 10.1" touchscreen) with a Rohde & Schwarz probe interface for all Rohde & Schwarz probes.
- 10-bit ADC: Four times more vertical resolution than standard 8-bit ADCs
- Maintains fast sampling rates at all times
- 10.1" touchscreen with gesture support
Power highlights (with power analysis option)
- Analyze the input, output and transfer function of switched-mode power supplies
- Measurement wizard for fast results
- Simple and fast documentation
- Analyze harmonic current in line with conventional EN, MIL and RTCA standards
Specifications
| Vertical system | ||
| Number of channels | R&S®RTM3002; R&S®RTM3004 | 2; 4 |
| Bandwidth (–3 dB) at 50 Ω | R&S®RTM3002/3004 (with bandwidth upgrade options) | 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz |
| Rise time (calculated) | R&S®RTM3002/3004 (with bandwidth upgrade options) | 3.5 ns, 1.75 ns, 1 ns, 700 ps, 350 ps |
| Input impedance | 50 MΩ ± 1,5% (meas.), 1 MΩ ± 1 % (meas.) || 14 pF ± 1 pF (meas.) | |
| Input sensitivity | max. bandwidth in all ranges | |
| at 1 MΩ | 500 μV/div to 10 V/div | |
| at 50 MΩ | 500 μV/div to 1 V/div | |
| DC gain accuracy | offset and position = 0, maximum operating temperature change of ±5°C after self-alignment | |
| input sensitivity > 5 mV/div | ±1.5 % of full scale | |
| input sensitivity > 5 mV/div | ±2 % of full scale | |
| ADC resolution | 10-bit, up to 16-bit with high resolution decimation | |
| Acquisition system | ||
| Maximum realtime sampling rate | 2.5 Gsample/s; 5 Gsample/s, interleaved | |
| Acquisition memory | standard; | 40 Msample (80 Msample interleaved) |
| with R&S®RTM-K15 option | 400 Msample segmented memory | |
| Horizontal system | ||
| Timebase range | selectable between 0.5 ns/div and 500 s/div | |
| Trigger system | ||
| Trigger types | standard | edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus, timeout |
| option | I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN,ARINC 429, MIL-STD-1553 | |
| MSO option | ||
| Digital channels | 16 (2 logic probe) | |
| Sampling rate | 1.25 Gsample/s | |
| Acquisition memory | standard; | 40 Msample (80 Msample interleaved) |
| with R&S®RTM-K15 option | 400 Msample segmented memory | |
| Waveform generator option | ||
| Resolution, sample rate | 14-bit, 250 Msample/s | |
| Amplitude | high Z; 50 Ω | 20 mV to 5 V (Vpp); 10 mV to 2.5 V (Vpp) |
| DC offset | high Z; 50 Ω | ±5 V; ±2.5 V |
| Signal forms frequency ranges | sine | 0.1 Hz to 25 MHz |
| pulse/rectangle | 0.1 Hz to 10 MHz | |
| ramp/triangle | 0.1 Hz to 1 MHz | |
| noise | max. 25 MHz | |
| Arbitrary | sampling rate; memory depth | max. 10 Msample/s; 32k points |
| General data | ||
| Screen | 10.1" WXGA TFT color display (1280 × 800 pixel) | |
| Interfaces | USB host with MTP, USB device, LAN, powerful web server for remote display and operation | |
| Audible noise | max sound pressure level at 1.0 m | 28.3 dB(A) |
| Dimensions | W × H × D | 390 mm × 220 mm × 152 mm (15.4 in × 8.66 in × 5.98 in) |
| Weight | 3.3 kg (7.27 lb) | |
