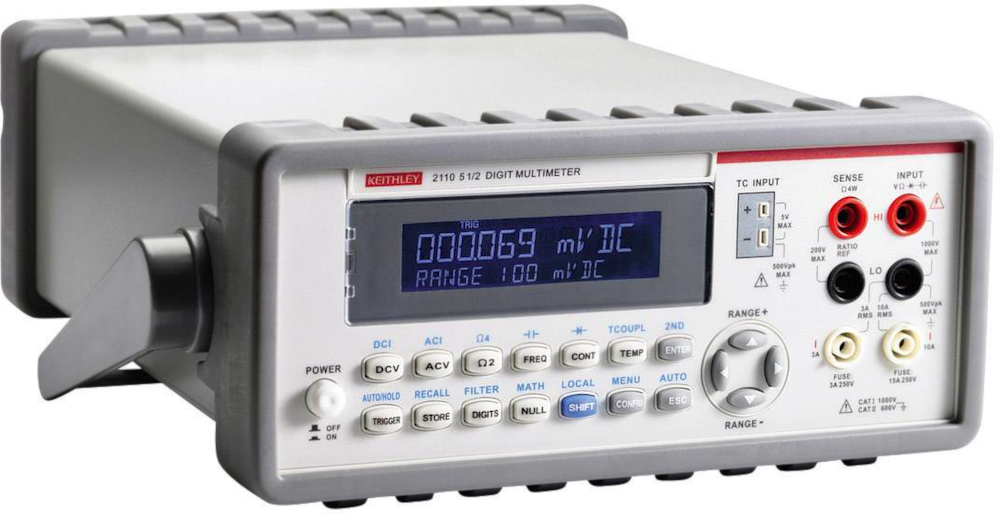

Keithley 2110-GPIB

GPIB	Oui
Interface RS232	Non
TRMS	Oui
Surtension de Sécurité	CAT I 1000V / CAT II 600V
Résolution en tension	1 µV à 10 mV
Précision (%)	0.012 % (tension DC, typique)
Résolution en nb points	200 000 points (5 1/2 chiffres)
Bande passante	DC, 10 Hz - 300 kHz
Tension continue max.	1000V DC (calibre)
Tension alternative max.	750V AC (calibre)
Courant continu max.	10A DC (calibre)
Courant alternatif max.	10A AC (calibre)
Série	2000
Poids Net	2.23 kg
Dimensions	107x252.8x305 mm
Caractéristiques Supplémentaires	Version avec interfaces USB & GPIB incluses (compatible SCPI)

Keithley DMM 2110-240

Key Performance Specifications

5.5 Digit Resolution
Basic VDC Accuracy of up to 0.012 % (1 yr.)
100 mV to 1000 V Voltage Range. with up to 1 uV Resolution
10 mA to 10 A Current Range. with up to 0.1 µA Resolution
100 Ω to 100 MΩ Range. with up to 1 kΩ Resolution
CAT I 1000 V. CAT II 600 V

Available Functions and Features

Volts. Ohms. and Amps Measurements
True RMS (AC. AC + DC) Measurements
Diode and Continuity Testing
Frequency and Period Measurements
Temperature and Capacitance Measurements
2×4 Ohms 4-wire Measurement Technique
TrendPlot™ Paperless Data Recorder Mode
Measurement Statistics
Histogram Mode

Connectivity

Front 2×4 Measurement Inputs
USB Host Port on Front Panel for Easy Storage of Measurement Data and Instrument Settings
GPIB Ports on Rear Panel for Quick PC Connectivity

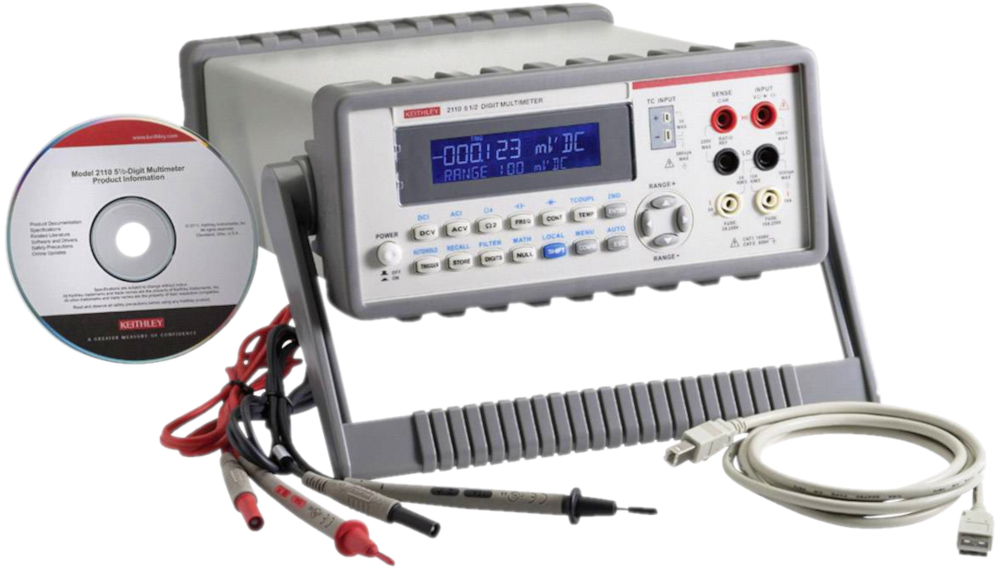

Includes USB Interface Adapter Cable
Includes National Instrument’s LabVIEW Driver.

APPLICATIONS

BUILT for Production Testing

The model 2110 Digital Multimeter is ideal for Application in manual. semi-automatic. and automatic testing of low-cost electronic devices. circuits. modules. electrical components. and semiconductor components. Key features include:

Speed : up to 50.000 readings per second
Control: GPIB (Optional) and USB interfaces. accepting SCPI (IEEE-488.2) Commands
External BNC trigger lines
NIST traceability (with included calobration certificate)

Built for General Porpose Uses

The model 2110 Digital Multimeter is also ideal for bench uses such as research. development. service. calibration. and teaching. Bench-oriented features include:

Accuracy: 0.012 % basic DCV accuracy
Easy-to-operate panel
Easy waveform plotting and data collection with KI-Tool and KI-Link
Store up to 2000 readings

SELECTOR GUIDE (2110 vs other models)

Models	2110	2000	2010
Digits	5½	6½	7½
Expansion Channel	N/A	10	10
DC Volts
Sensitivity	1 µV	1 µV	1 nV
Maximum Reading	1000 V	1000 V	1000 V
Basic Accuracy	0.012%	0.002%	0.0018%
AC Volts (TRMS)
Sensitivity	1 µV	100 nV	100 nV
Maximum Reading	750 V	750 V	750 V
Basic Accuracy	0.12%	0.05%	0.05%
Bandwidth	10 Hz–300 kHz	3 Hz–300 kHz	3 Hz–300 kHz
dB. dBm		-	-
Frequency. Period	-	-	-
Peak/Avg/RMS	RMS
AC. AC+ DC	AC	AC
Ohms (2/4 Wire)
Sensitivity	1 MOhm	100 µOhm	100 µOhm
Maximum Reading	100 MOhm	120 MOhm	120 MOhm
Basic Accuracy	0.02%	0.008%	0.0032%
DC Amps
Sensitivity	0.1 µA	10 nA	1 nA
Range Span	10 mA–10 A	10 mA–3 A	10 mA–3 A
Basic Accuracy	0.015%	0.03%	0.03%
AC Amps (TRMS)
Sensitivity	10 µA	1 µA	1 µA
Range Span	1 A–10 A	1 A–3 A	1 A–3 A
Basic Accuracy	0.3%	0.1%	0.1%
Bandwith	10 Hz–5 kHz	3 Hz–5 kHz	3 Hz–5 kHz
General Features
Interface	USB. GPIB (opt.)	GPIB. RS-232	GPIB. RS-232
Reading Hold	-	-	-
Digital I/O	Trigger In/Out
Reading Memory	1024 rdg	1024 rdg	1024 rdg
Maximum Speed	50K rdg/s	2000 rdg/s	2000 rdg/s
Temperature Meas.	T/C. RTD. Thermistor	T/C	T/C. RTD

Multimètre numérique de table 5.5 digits, 1000 V, 10 A, 100 MOhm, USB & GPIB inclus

683,28 € 683.28 EUR 683,28 € TTC 1 138,80 €

649,00 € TTC 949,00 €
