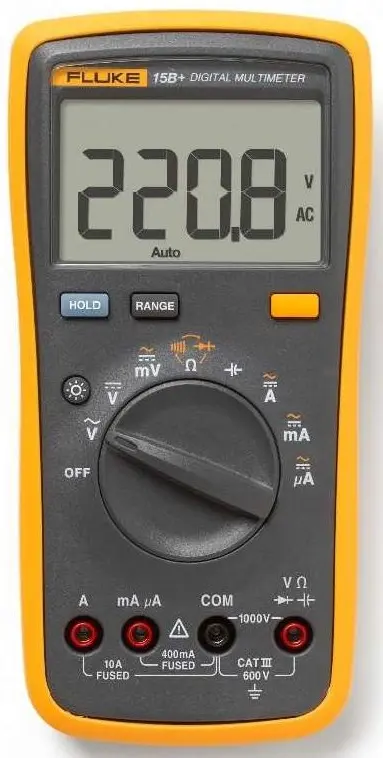

FLUKE 15B+
Multimètre numérique portable 4000 points - 1000V/10A AC/DC
| Niveau de sécurité | CAT I, CAT II, CAT III |
|---|---|
| Mesures additionnelles | Capacité, Résistance, Test de continuité, Test de Diode |
| Tension | CA (Alternatif), CC (Continu) |
| Tension continue max. | 1000 - 1500V, 600V - 1000V |
| Tension alternative max. | 1000 - 1500V, 750V - 1000V |
| ATEX | Non |
| Interface RS232 | Non |
| TRMS | Non |
| Enregistrement PC | Non |
| Entrée directe pour sonde de courant | Non |
| Compatible Windows | Non |
| Compatible iOS | Non |
| Compatible Android | Non |
| Image thermique intégrée | Non |
| Surtension de Sécurité | CAT III, 600V |
| Résolution en tension | 0.1mV |
| Précision (%) | 0.5% |
| Autonomie | 500 heures |
| Résolution en nb points | 4000 points |
| Bande passante | DC & 40-500Hz |
| Tension continue max. | 1000V DC |
| Tension alternative max. | 1000V AC |
| Courant continu max. | 10A DC |
| Courant alternatif max. | 10A AC |
| Livré avec | Cordons de mesures TL75, 2 piles AA, manuel d'utilisation |
Fluke 15B+
- 600 V Cat III safety rating
- AC/DC voltage measurement up to 1000V
- AC/DC current measurement up to 10A
- Measures voltage, resistance, continuity, capacitance
- Diode test, data hold
- Large easy-to-read display with bright white backlight
Fluke quality is always within your reach
Unlock professional-grade precision, durability, and safety with the Fluke 15B+ Digital Multimeter. The Fluke 15B+ packs all the core functionality you need in a digital multimeter into a portable, rugged form tool that’s easy-to-use with one hand, even with gloves on. From AC/DC voltage and current measurements up to 1000V and 10A, to comprehensive capabilities including resistance, capacitance, and frequency checks, the 15B+ is your go-to for troubleshooting a wide array of electrical issues.
The CAT III 600V safety rating provides peace of mind for everything from routine checks on electrical equipment and appliances, to checking voltage levels at power outlets or switches, to diagnosing issues with circuits. Ideal for both DIY enthusiasts and early career electricians looking to streamline their toolkit, the Fluke 15B+ is a reliable and versatile addition to your toolkit.
Specifications
Accuracy Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).
| Function | Range | Resolution | Accuracy | |
| AC volts (40 Hz to 500Hz)1 | 4.000 V 40.00 V 400.0 V 1000 V | 0.001 V 0.01 V 0.1 V 1 V | 1.0% + 3 | |
| DC volts | 4.000 V 40.00 V 400.0 V 1000 V | 0.001 V 0.01 V 0.1 V 1 V | 0.5% + 3 | |
| AC millivolts | 400.0 mV | 0.1 mV | 3.0% + 3 | |
| DC millivolts | 400.0 mV | 0.1 mV | 1.0% + 10 | |
| Diode test2 | 2.000 V | 0.001 V | 10% | |
| Resistance (Ohms) | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ | 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ | 0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3 | |
| Capacitance3 | 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF | 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF | 2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5 | |
| AC current μA (40 Hz to 400 Hz) | 400.0 μA 4000 μA | 0.1 μA 1 μA | 1.5% + 3 | |
| AC current mA (40 Hz to 400 Hz) | 40.00 mA 400.0 mA | 0.01 mA 0.1 mA | 1.5% + 3 | |
| AC current A (40 Hz to 400 Hz) | 4.000 A 10.00 A | 0.001 A 0.01 A | 1.5% + 3 | |
| DC current μA | 400.0 μA 4000 μA | 0.1 μA 1 μA | 1.5% + 3 | |
| DC current mA | 40.00 mA 400.0 mA | 0.01 mA 0.1 mA | 1.5% + 3 | |
| DC current A | 4.000 A 10.00 A | 0.001 A 0.01 A | 1.5% + 3 | |
| Backlight | Yes | |||
| 1AC volts are specified from 1% to 100% of range. Inputs below 1% of range are not specified. 2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. 3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). |
| Function | Overload protection | Input impedance (Nominal) | Common mode rejection ratio | Normal mode rejection ratio |
| AC volts | 1000 V 1 | >10 MΩ <100 pF | >60 dB at dc, 50 Hz or 60 Hz | - |
| AC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | - |
| DC volts | 1000 V 1 | >10 MΩ <100 pF | >100 dB at dc, 50 Hz or 60 Hz | >60 dB at 50 Hz or 60 Hz |
| DC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | - |
| 1 106 V Hz Max |
General specifications | |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Display (LCD) | 4000 counts, updates 3/sec |
| Battery type | 2 AA, NEDA 15A, IEC LR6 |
| Battery life | 500 hours minimum |
| Temperature | |
| Operating | 0 °C to 40 °C |
| Storage | -30 °C to 60 °C |
| Relative humidity | |
| Operating humidity | Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C |
| 40 MΩ range ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C | |
| Altitude | |
| Operating | 2000 m |
| Storage | 12,000 m |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
| IP rating | IP 40 |
| Safety | IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Portable EMC Environment |
| Class A equipment (industrial broadcasting & communication equipment)1 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. |
