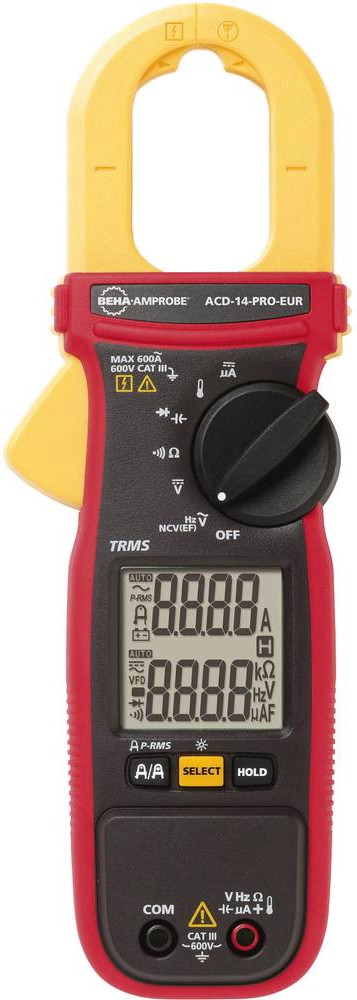

Beha-Amprobe ACD-14 Pro
Pince multimètre TRMS 600A AC, 2mA DC, 600V AC/DC - double affichage
Double afficheur - lecture simultanée du courant et de la tension
Mesure de micro-courants pour le contrôle des détecteurs de présence de flamme (0-2000uA DC)
Capacité jusqu'à 2500 uF
Température avec thermocouple de type K
Tension AC et DC jusqu'à 600 V
Courant AC jusqu'à 600 A
Résistance jusqu'à 6000 kOhm
Indicateur sonore de continuité, mesure de fréquence, arrêt automatique, sélection automatique de gamme, gel de l'affichage et mesure des valeurs maximales, courant de démarrage...
Ouverture de la mâchoire 30 mm
CAT III 600 V
| TRMS | Oui |
|---|---|
| Compatible iOS | Non |
| Compatible Android | Non |
| Image thermique intégrée | Non |
| Surtension de Sécurité | CAT III, 600V |
| Autonomie | nc |
| Résolution en nb points | 6000 points |
| Bande passante | DC; 50/60 Hz; 100-400 Hz |
| Tension continue max. | 600V DC |
| Tension alternative max. | 600V AC |
| Courant continu max. | 2000uA DC |
| Courant alternatif max. | 600A AC |
| Taille mâchoire | 30mm |
| Série | ACD14, ACD-14, ACD-14 TRMS-Plus |
| Poids Net | 208 g |
| Dimensions | 219x77x37 mm |
| Caractéristiques Supplémentaires | Double affichage - lecture simultanée du courant et de la tension |
Articles associés
BEHA-AMPROBE ACD-14-PRO-EUR
Dual Display 600 A TRMS Clamp Multimeter
Test Voltage and Amperage Simultaneously
The ACD-14-PRO-EUR offers a complete range of measuring functions for both HVAC and electrical applications. This modern clamp meter features a large backlit dual LC-Display and is capable of simultaneously displaying voltage and amps. The ACD-14-PRO-EUR is packed with features including TRMS, low pass filter, in rush-current, frequency, resistance, capacitance, temperature, DC micro-amps, Amp-Tip and non-contact voltage detection. The Amp-Tip function allows for precise measurement of current down to the tenth of an amp for reliable, accurate current measurement of both large and small diameter wires. The low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). The meter features a rubber over- mold enclosured that provides extra durability and is safety rated to measurement category CAT III 600 V.
Functions
- True RMS current measurement
- Voltage and resistance measurement
- Capacitance and frequency measurement
- Temperature measurement
- Continuity beeper
- Low pass filter
- Measurement of inrush current
- Non-contact voltage detection
Product information
- Automatic range selection
- Integrated measurement memory (data hold)
- Jaw opening 30 mm
- Auto Power Off
Product highlights
- Dual display with illumination
- Precise measurement of small AC currents (Amp-Tip)
- Measurement of ionization current (μA DC range) in heating systems
- True RMS measurement (TRMS)
SPECIFICATIONS | |
| Safety rating | CAT III 600 V |
| True-RMS | • |
| AC/DC Voltage (V) | 600 V |
| AC Current (A) | 600 A |
| Jaw Opening | 1.18 in (30 mm) |
| Micro Amps (µA) | 2000 µA |
| Temperature | -40 °F to 752 °F / -40 °C to 400 °C |
| Low Pass Filter | • |
| Frequency (Hz) | 5.00 to 999.9 Hz |
| Resistance (kΩ) | 6000 kΩ |
| Capacitance (µF) | 2500 µF |
| Diode Test | • |
| Continuity Beeper | < 10 Ω |
| Non-Contact Voltage | • |
| Electric Field Detection (test leads) | • |
| Autoranging | • |
| In-rush Current | • |
| Data Hold | • |
| Backlight | • |
| Auto Power Off | • |
Included accessories:
- User manual
- Test leads
- Carrying case
- Batteries AAA (2)
- Banana plug K-type thermocouple
