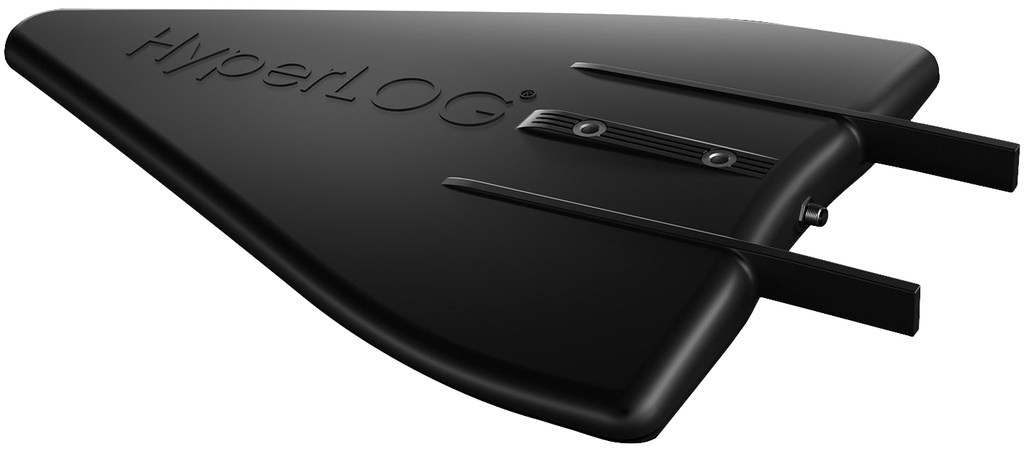

Aaronia HyperLOG Pro 70140
Antenne directionnelle log-périodique passive, 700MHz-14GHz
Bande de fréquence: 700MHz à 14GHz.
Impédance nominale: 50 Ohm.
Gain.: 13dBi.
ROS: < 1.3:1.
Connexion HF: prise SMA (f) ou N via adaptateur.
Dimensions (L/L/H): 590x360x30mm.
Poids: 1200 g.
| Directionnelle ? | Oui |
|---|---|
| Fréquence (max) | 14 GHz |
| Fréquence (min) | 700 MHz |
| Série | Spectran, HyperLOG Pro |
| Poids Net | 1.2 kg |
| Dimensions | 590x360x30 mm |
Articles associés
HyperLOG® PRO 70140
High performance DF antenna
| KEYFACTS | |
|---|---|
| Frequency Range | 700 MHz - 14 GHz |
| Design | LPDA Hybrid |
| Active | No |
| Gain (max.) | 13 dBi |
| Connector | SMA (f) |
| Mount | 1/4" Thread |
| Dimensions | 590x360x30 mm |
| Weight | 1200 g |
Extension of the well-known and popular HyperLOG 70xx series!
Directional measurement and direction finding antenna with a frequency range of 700 MHz - 14 GHz and SMA (f) connector. Included are carrying case, mini tripod, SMA tool and 2m SMA cable with tightening nuts.
| Livraison : | HyperLOG PRO 70140 antenna, Typical calibration data, Aluminum carrying case with foam protection, Pistol grip with mini tripod function, 2m SMA cable, Aaronia SMA tool set with over-torque protection. |
|---|
Directional Antennas
HyperLOG® PRO Series
The powerful directional antennas of the HyperLOG® PRO series are a further development of the well-known and popular HyperLOG® antennas. They have been significantly improved again in terms of performance, directionality and frequency range. The HyperLOG® PRO series supports a wide frequency range from 2 GHz to 40 GHz.
The excellent performance data of the HyperLOG® PRO antenna series can be impressively underpinned by an optional measurement certificate with a large number of measurement points. The HyperLOG® PRO antennas are therefore predestined in particular as high-quality measurement antennas for the laboratory, but also for portable measurements or as DF antennas.
Features
- Optimal for use with spectrum analyzer for EMC measurements
- Incl. high-tech radome with modern, attractive design
- Polarization planes can be aligned as desired
- Excellent forward/backward ratio
- Excellent symmetry of radiation patterns
- Integrated 1/4" tripod connection
- Suitable for mobile use
- Suitable for outdoor mounting
- Steering compass (option)
